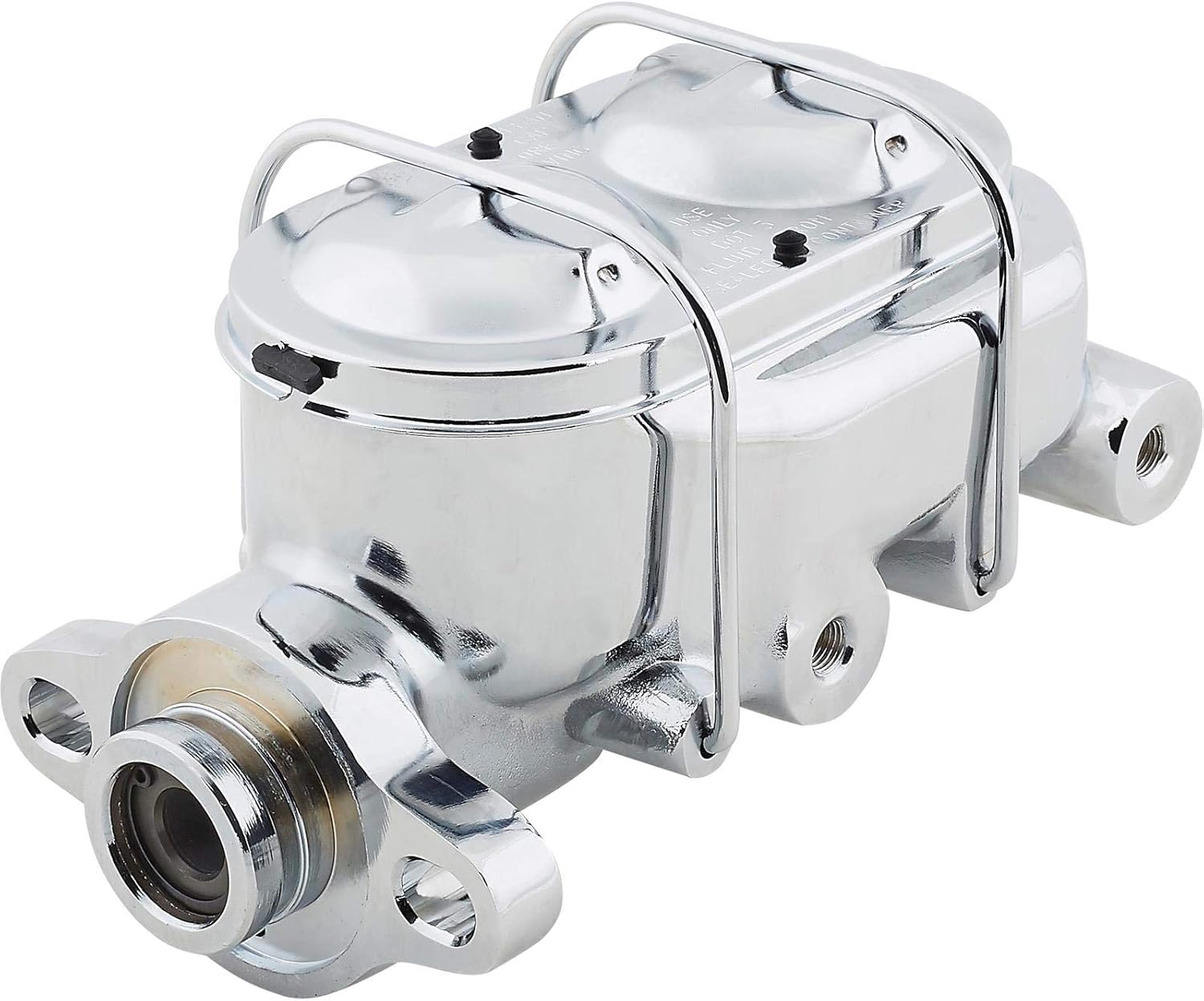

Speedway Motors Universal Corvette Style Master Cylinder 1 Inch Bore, Chrome Aluminum, Power or Manual Systems, Dual Reservoir, Firewall Mount, Disc Drum

These high-tech corvette-style master cylinders were designed using OE specifications and 100% tested. They have a 1" bore and are suited for disc/drum combinations. Each master cylinder is ported on both the left and right sides, allowing for installation in many different applications. This exclusive design features a mating flange that works with applications requiring 3-1/8” through 3-3/8” bolt patterns. These master cylinders will work with manual or power brake systems and can be quickly changed with the included adapter plug to fill the deep well in the piston face for the pedal push rod or booster pin. The wide body and low profile gives this master cylinder the clearance you need when installing in tight areas and yet it maintains a large volume of fluid necessary for 2 and 4 wheel disc brake applications. Aluminum body. Chrome plated finish. 1" bore. 3/8-24 IFF ports on either side. Mount spacing is 3-3/8" on center. Works with power or manual brake systems. Compact, for installation under floor or on firewall. Suited for either disc/disc or disc/drum combinations. Stroke of this master cylinder is approximately 1-1/16" Learn more about selecting the proper master cylinder for your vehicle by reading our tech article.Brake System Selection. Item Details Dual reservoir master cylinder 1" bore, Dual Port, Plain

• Corvette-Style Design – Engineered to OE-style specifications and 100% tested, providing reliable performance in a compact, wide-body master cylinder layout
• Versatile Brake Compatibility – 1-inch bore is well suited for disc/drum or disc/disc brake combinations in a wide range of vehicle applications
• Flexible Port Configuration – Ported on both left and right sides with 3/8"-24 IFF outlets, allowing easy installation in multiple chassis layouts
• Power or Manual Use – Works with both power-assisted and manual brake systems, including adapter plug for proper pushrod or booster engagement
• Compact Chrome Aluminum Body – Lightweight aluminum construction with a chrome-plated finish offers excellent clearance for tight firewall or under-floor installations
