ICC CAT5e Patch Panel, UL Listed & PoE++ Rated Gigabit Applications, Rackmount 24 Port 1U 19-Inch Network Patch Panel with Rear 110 IDC Terminal Blocks for Gigabit Network Switch, Black
5.0 (90 items)
Limited Time SaleUS$22.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215609939 | Release Date | 2026/04/12 | List Price | US$14.93 | Model Number | 215609939 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The ICC 24-Port CAT5e Patch Panel is designed to deliver high-performance connectivity for Gigabit Ethernet networks. Built with durable 16-gauge cold-rolled steel, this patch panel supports maximum speed and bandwidth while being backward compatible with lower-rated category components. Gold-plated contacts ensure correction-free connections, supporting up to 90W of Power over Ethernet (PoE++). Featuring 110 IDC termination blocks for efficient installation, it can be re-terminated over 100 times. Numbered ports and color-coded TIA-568A/B wiring diagrams simplify setup. Engineered to exceed ANSI/TIA-568 Category 5e standards, it enhances crosstalk cancellation for superior network performance. UL listed and built for long-lasting reliability in standard 19” racks.
- HIGH-PERFORMANCE CONNECTIVITY: Rack-mounted CAT5e component-rated fixed patch panel made with 16-gauge cold-rolled steel (16 GA CRS), delivering excellent performance for data networks requiring maximum speed and bandwidth. Backward compatible with all lower rated category components.

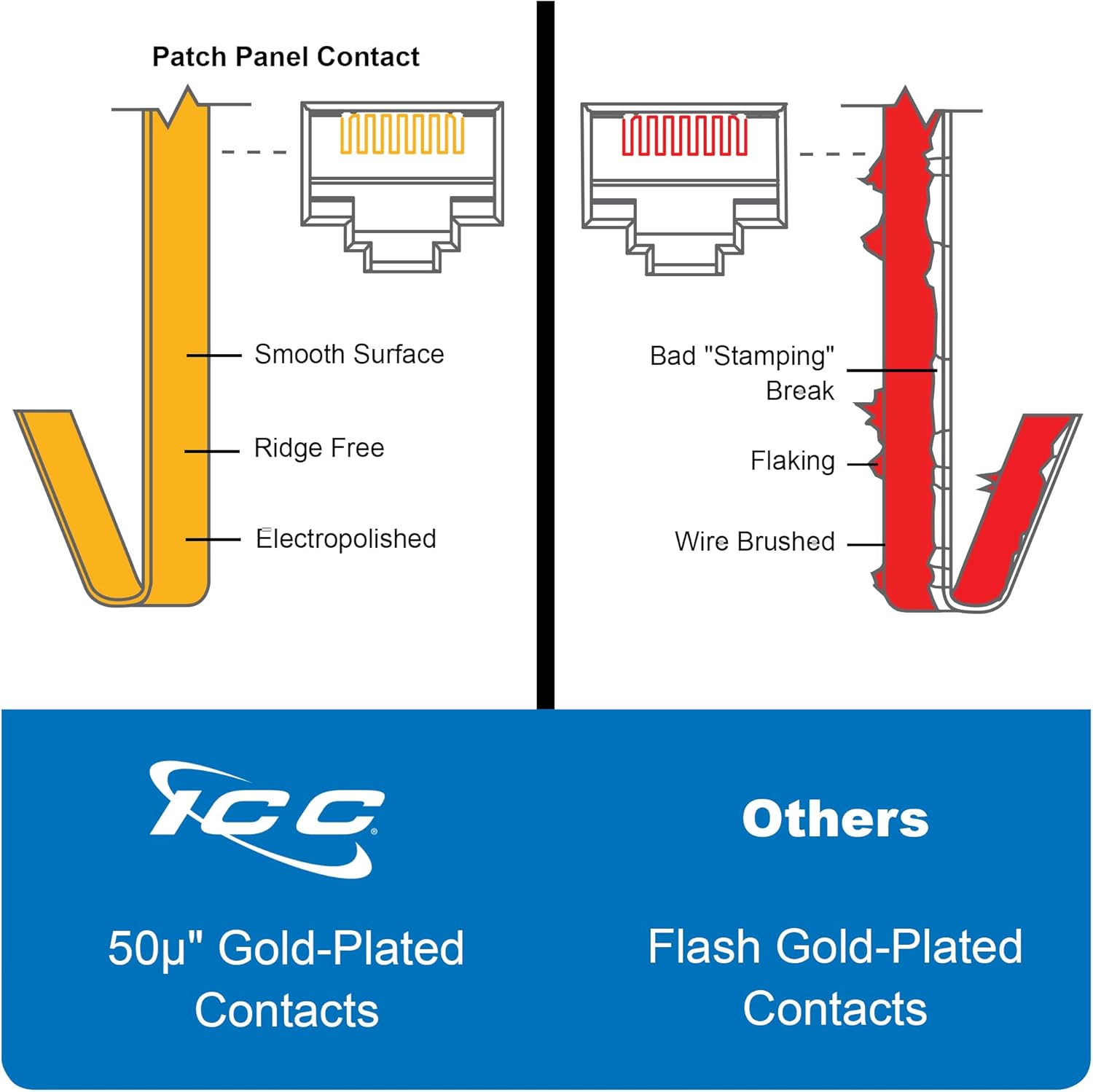

- FUTURE-PROOF AND RELIABLE: Designed for Gigabit Ethernet, ensuring your network is future-proof. Ideal for Gigabit Ethernet switches. Gold-plated contacts ensure a correction-free connection with 50 micro-inches of gold over 100 micro-inches of nickel. Supports Power over Ethernet (PoE) up to 90W.
- EFFICIENT INSTALLATION AND QUICK REFERENCE: Features 110 IDC termination to reduce installation time. The 110 IDC on the rear can be re-terminated over 100 times. Numbered ports and color-coded TIA-568A and TIA-568B wiring diagrams provide quick and easy reference, fitting standard 19" EIA rack mount width with 1U (1.75") standard height.
- DURABLE MATERIALS AND SAFETY COMPLIANCE: Jack housing constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) and durable phosphor bronze spring wire. Phosphor bronze alloy 110 connectors with 100 micro-inches of nickel alloy. RJ45 jack can accept over 750 plug to jack insertion cycles. UL listed for fire safety compliance.
- ENHANCED CROSSTALK CANCELLATION: Engineered to exceed ANSI/TIA-568 Category 5e connecting hardware requirements with enhanced crosstalk cancellation, reducing return loss and improving overall network performance.
| UPC | 012302182063 012302823492 754262019781 021111588133 072091646139 633758006866 999998412042 999993953014 777782592893 999992719444 601000785524 172302646696 |
|---|---|
| Color | CAT 5e |
| Gauge | 16.0 |
| Model | ICC-ICMPP0245E |
| Wattage | 90 watts |
| Brand Name | ICC |
| Cable Type | Component, Ethernet |
| Item Shape | Round |
| Model Name | ICC-ICMPP0245E |
| Unit Count | 1.0 Count |
| Item Weight | 1.5 Pounds |
| Manufacturer | ICC |
| Connector Type | RJ45 |
| Number of Pins | 8 |
| Outer Material | cold-rolled steel with a black finish |
| Number of Items | 1 |
| Connector Gender | Female Ports |
| Specification Met | Ansi/Tia-568,icc |
| Compatible Devices | Ethernet Devices, Security Cameras |
| Data Transfer Rate | 1000 Megabits Per Second |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Customer Package Type | Pack of 1 |
| Compatible Phone Models | No Compatible Phone Models |
| Ethernet Cable Category | Cat 5e |
| Recommended Uses For Product | Structured cabling systems, connecting Ethernet devices and security cameras in high-speed local area networks (LANs) |
| Global Trade Identification Number | 00633758006866 |
| Other Special Features of the Product | PoE++ Rated to Power Devices |
